Sound-Panel All-In-One Shallow Mount Speaker System

Introducing the FUSION Sound-Panel, a revolutionary speaker system made for boating enthusiasts and the diverse needs of different vessels. The Sound-Panel solves the age-old problem of achieving professional quality audio from the limitations of shallow mounting depths often required in many installations.

The Sound-Panel boasts two soft dome tweeters, two custom 4" speaker drivers and a bass radiator, all perfectly tuned to the Sound-Panel enclosure. Together this brings 200 Watts of powerful, high quality audio to your vessel.

Features:

IP65 weatherproof - The Sound-Panel is rated IP65 for protection in the harsh marine environment from the front and rear of the enclosure, making it perfect for installation both on the outside or inside of your boat.

Different mounting options available - Optional mounting spacer accessories are available to suit the variable mounting depths available on each boat. There are four mounting options available:

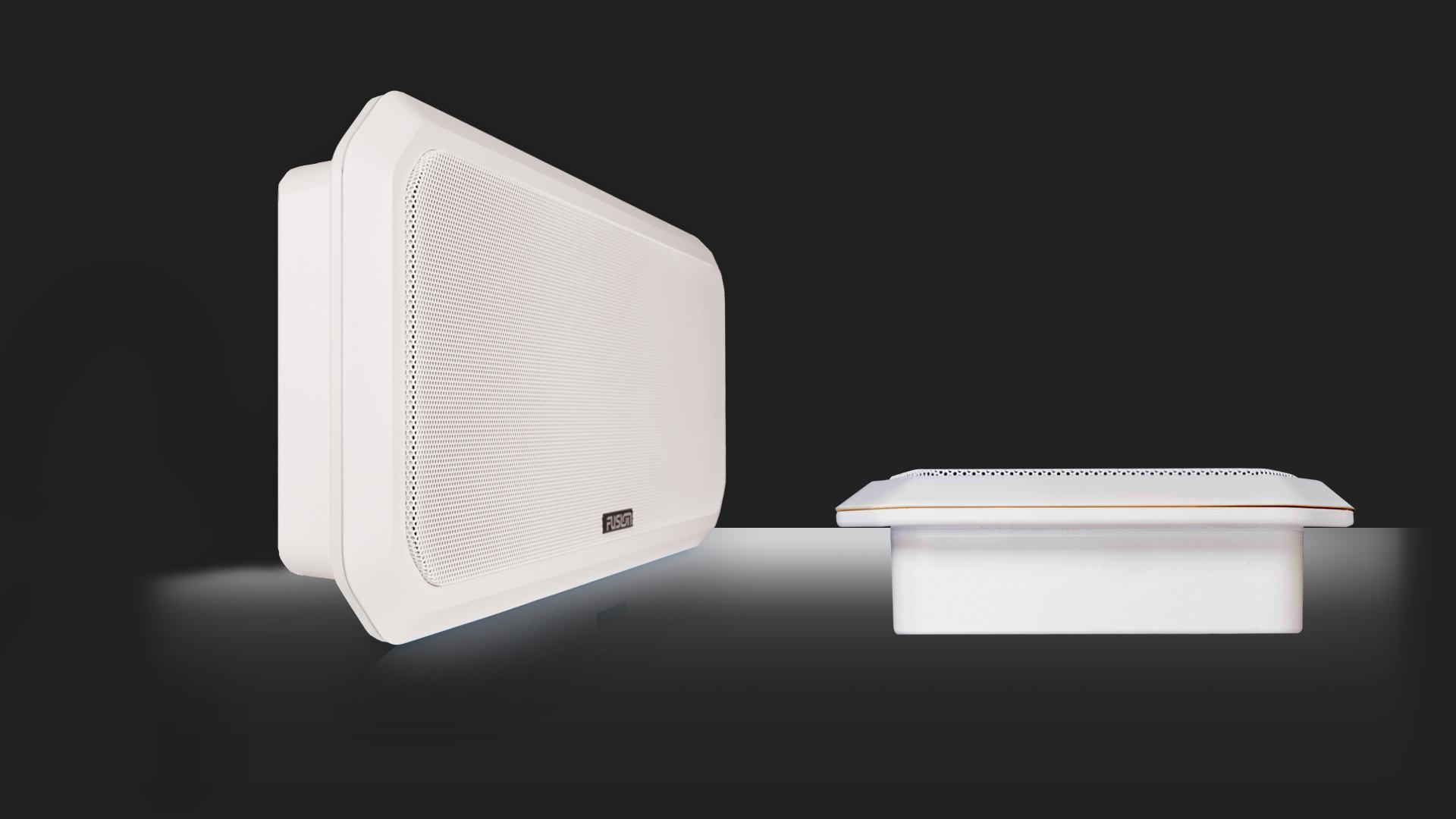

• Flush – With only a 41mm required depth the RV-FS402B will fit flush in most locations.

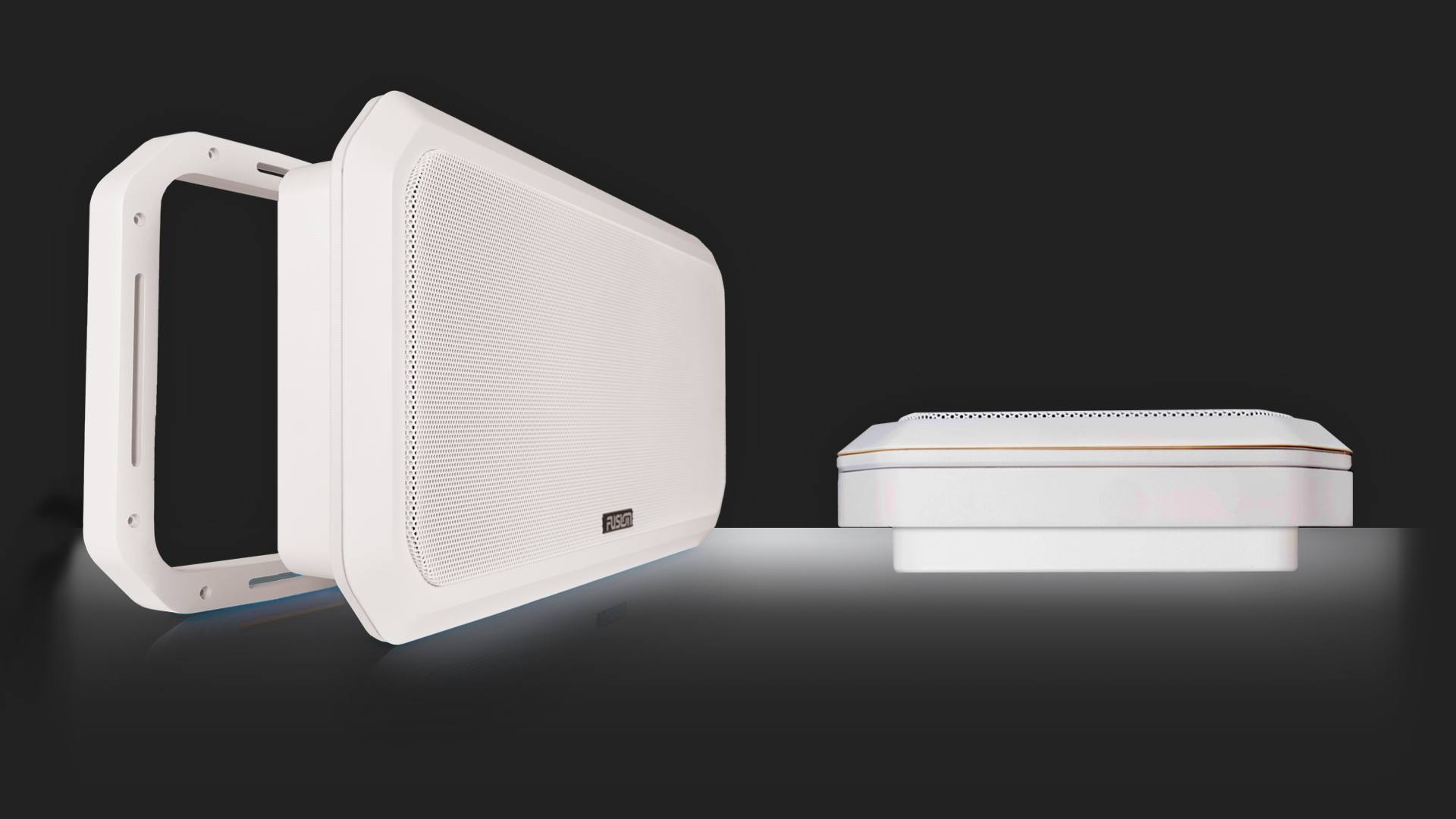

• 19mm wall depths – The RV-FS402B can be semi mounted into the cavity by using the 22mm spacer, thanks to new technology available in construction.

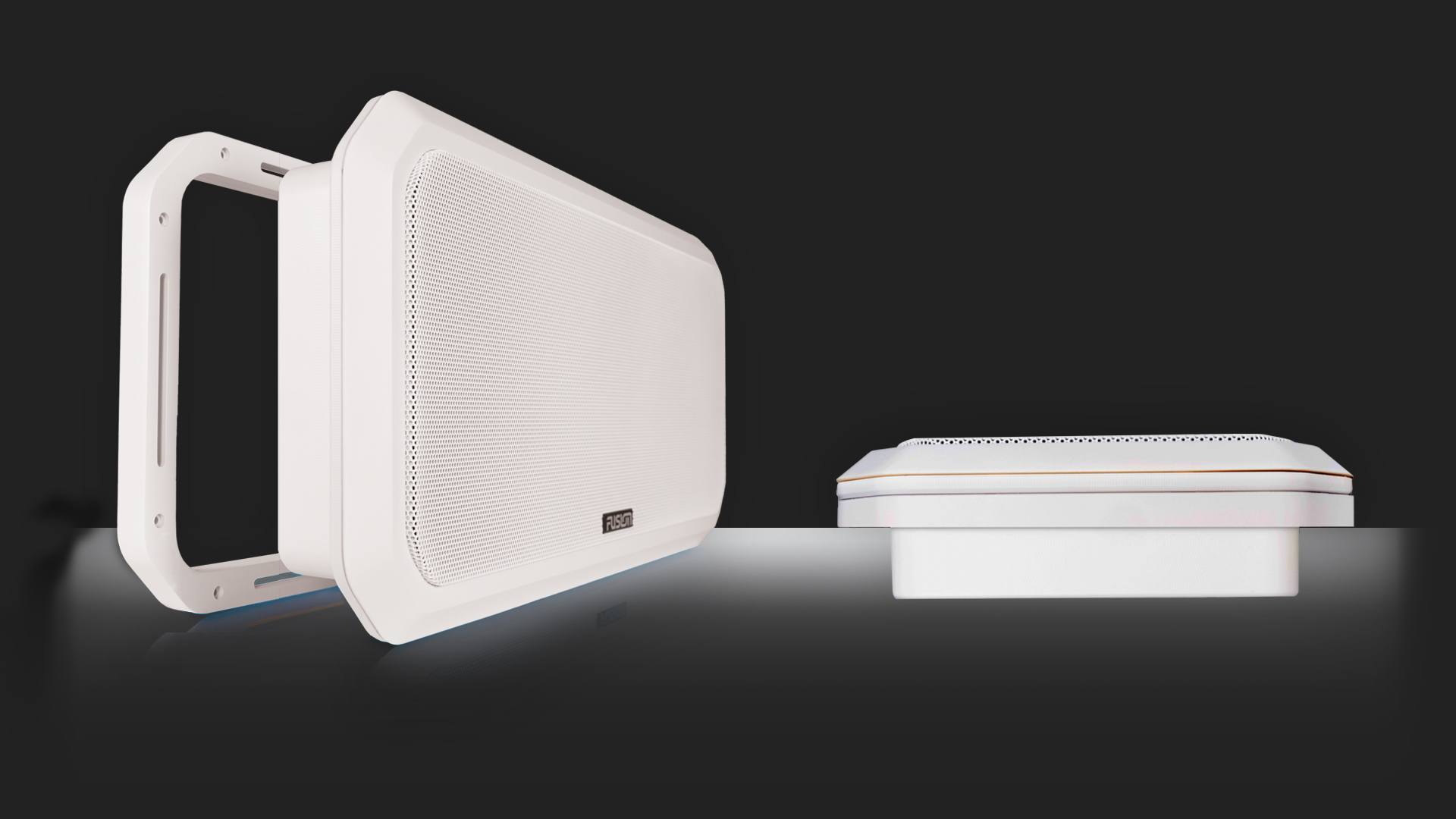

• 25mm wall depths – By using the 16mm spacer the RV-FS402B can be semi mounted into normal construction panels.

• Surface mount – The RV-FS402B can be installed directly onto any flat surface with no cut out required.

Quick and simple installation – The RV-FS402B is designed for easy installation through requiring only a single cut-out. Both the left and right speaker wires from the source unit or amplifier only need to be routed to one location for connection, making this speaker system relatively quick and simple to install.

Stainless hardware – Stainless steel mounting hardware is included with the RV-FS402B to limit corrosion and tea staining, so it can keep looking great season after season.

Tuned, sealed enclosure with a passive radiator - The RV-FS402B is an all-inclusive solution. The sealed design protects all drivers and components from damage in any mounting location.

Product Specifications

Tweeter Type Soft dome tweeter
Peak Power 100 W (per speaker connection)
RMS Power 25 W (per speaker connection)
Efficiency (1W/1M) 87dB
Mounting Depth Clearance 41 mm (1-5/8”)
Mounting Dimension Clearance 431 mm (17”) x 171 mm (6-3/4”)
Impedance 4 Ohms
Frequency Response 67Hz - 20kHz
Schreiben Sie eine Bewertung
Sie bewerten:Sound-Panel All-In-One Shallow Mount Speaker System
Weitere Informationen
Manufacturer Fusion

Sound-Panel All-In-One Shallow Mount Speaker System

149,00 €
Lieferbar 6-8 Tage
SKU
010-01791-00

Professional Sound Quality Meets Quick and Simple Installation

The Sound-Panel solves the age-old problem of delivering professional sound quality from the limitations of shallow mounting depths often required in many installations. Designed for easy installation, both the left and right speaker wires from the source unit or amplifier only need to be wired to one location for connection, saving time and money.

Versatile Mounting Solutions

The Sound-Panel has four mounting options available to create a professional indoor or outdoor installation.

Surface Mounting
3/4" Mounting Depth
1" Mounting Depth
1 5/8" Mounting Depth

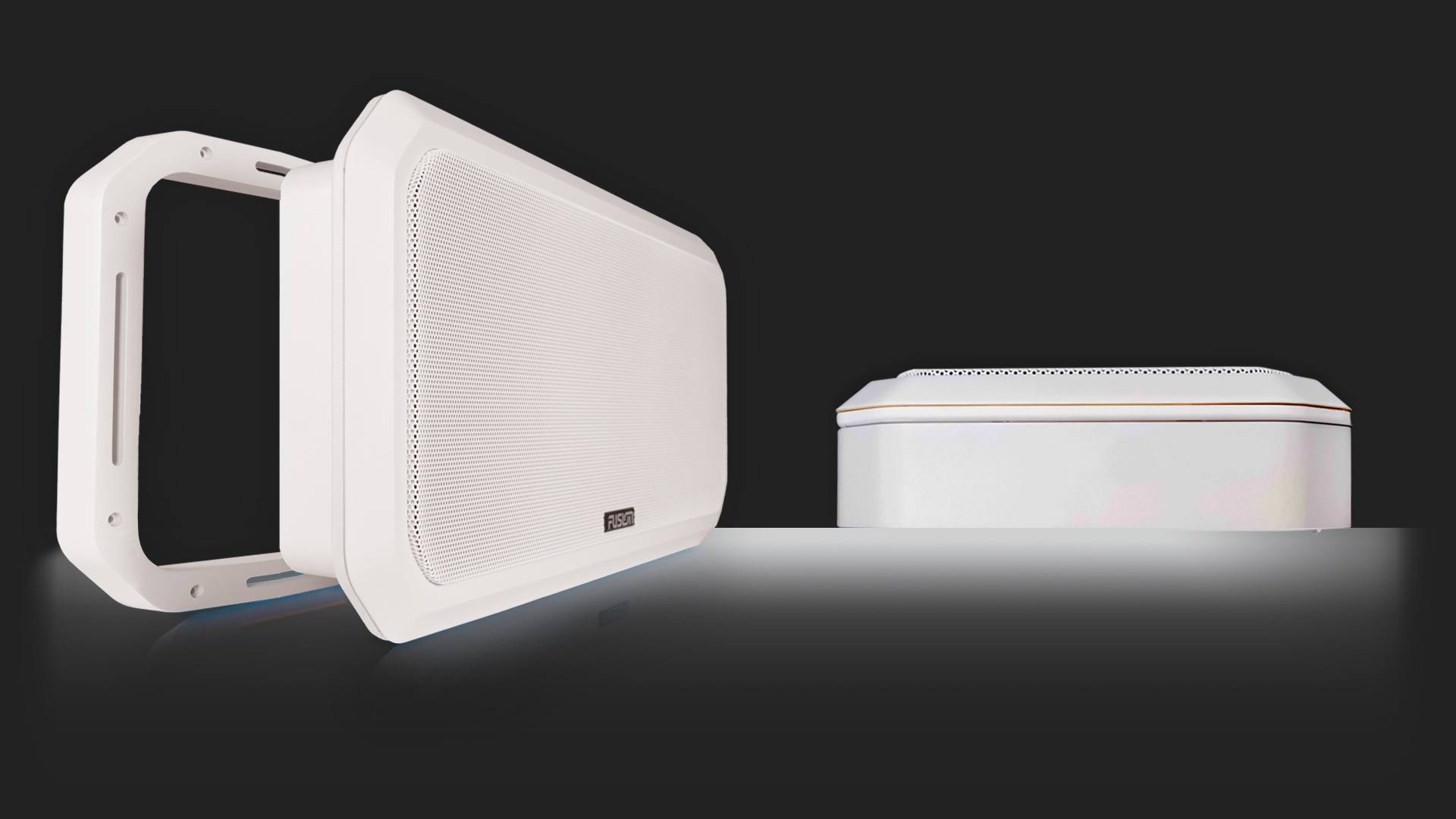

RV-FS41SPW - By using the 41mm (1-5/8") spacer the Sound-Panel will surface mount onto any flat surface with no cut out required.

IP65 Weatherproof

The front and rear of the Sound-Panel is rated IP65 and tested against UV, salt fog, dust and water ingress for protection from the harsh marine environments. This makes it perfect for installation on the outside of a vessel.
