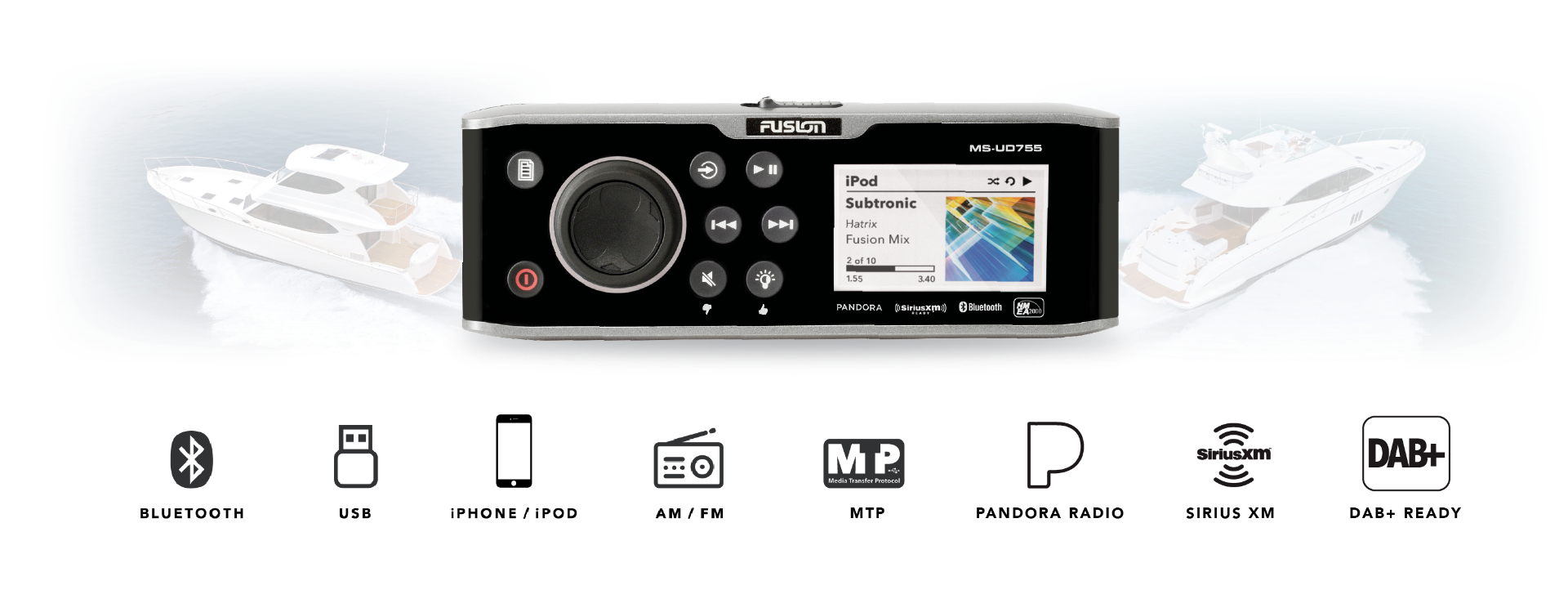

Sources: AM / FM / CD / DVD / Bluetooth / USB / AUX x 2 / iPod / iPhone / MTP / Pandora (USA Only) / DAB+ Ready (EU Only – requires optional FUSION DAB+ module, sold separately)
Tuner | AM/FM with RDS where available |
---|---|
Tuner Region | USA – Australasia – Europe – Japan |
Multi-Language User Interface | English, French, German, Spanish, Dutch, Italian |
Peak Power | 280W Max (@ 2 Ω) |
Amplifier | Class-D: 4 x 26 W rms @ 14.4Vdc input, 4 Ω, ≤ 10% THD+N. 4 x 43 W rms @ 14.4Vdc input, 2 Ω, ≤ 10% THD+N |
Audio Zones | 4 Zones (Zone 1 & 2 powered by internal amplifier) + 4 line out zones |
Nameable Zones | Yes – Up to 10 characters per zone |
Line Out | 4 (1 x L + R per zone, all require amplification) |
Sub Out | 4 (1 per zone, all require amplification) |
Auxiliary Inputs | 2 x stereo RCA inputs (AUX1, AUX2) |
iPod/iPhone | Made for iPod and iPhone |
Album Art | Available via USB on supported Apple, MTP (Android/Windows) and USB flash drive devices |
Display | 16:9 WQVGA color widescreen optically bonded LCD |
NMEA 2000 | NMEA 2000 Certified LEN: 1 |
Fusion-Link | Compatible with NRX Series wired remote and supported Multi-Function Displays (MFDs) for wired control via NMEA 2000 or Ethernet (visit www.fusion-link.com for compatible MFDs). Wireless control is available with the Fusion-Link remote control app, available for free download for compatible Apple and Android devices. |
Bluetooth Wireless Technology | A2DP audio streaming with AVRCP support (album art is not supported) |
USB | 2 X USB connectors (1 x internal and 1 x rear) |
Media Transfer Protocol (MTP) | Support for compatible Windows & Android media devices via USB |
Audio Format (MTP & USB) | MP3, M4A, FLAC |
SiriusXM-Ready™ | (USA Only.) Requires SiriusXM Connect vehicle tuner (sold separately). For more information visit www.siriusxm.com. |
UNI-Dock | Support for Apple iOS 30-Pin and Lightning™ devices, MTP Android and Windows smartphones with Micro USB connectors. |
UNI-Dock Size Constraints | Device measurements must be equal to or less than the following: 140mm L x 73mm W x 12mm D (5-1/2" L x 2-7/8" W x 1/2" D) |
Water Resistance | 360° IPx5 water resistant fully sealed chassis |
Chassis | Electrically isolated glass filled composite with aluminum heat sink |
DAB+ Ready | MS-DAB100A is required for DAB support, only available where DAB and DAB+ is broadcast |
Compatible Apple Devices | iPhone X, iPhone 8, iPhone 8 Plus, iPhone 7, iPhone 7 Plus, iPhone SE, iPhone 6s, iPhone 6s Plus, iPhone 6, iPhone 6 Plus, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPod Touch (5th and 6th gen) |
Manufacturer | Fusion |
---|

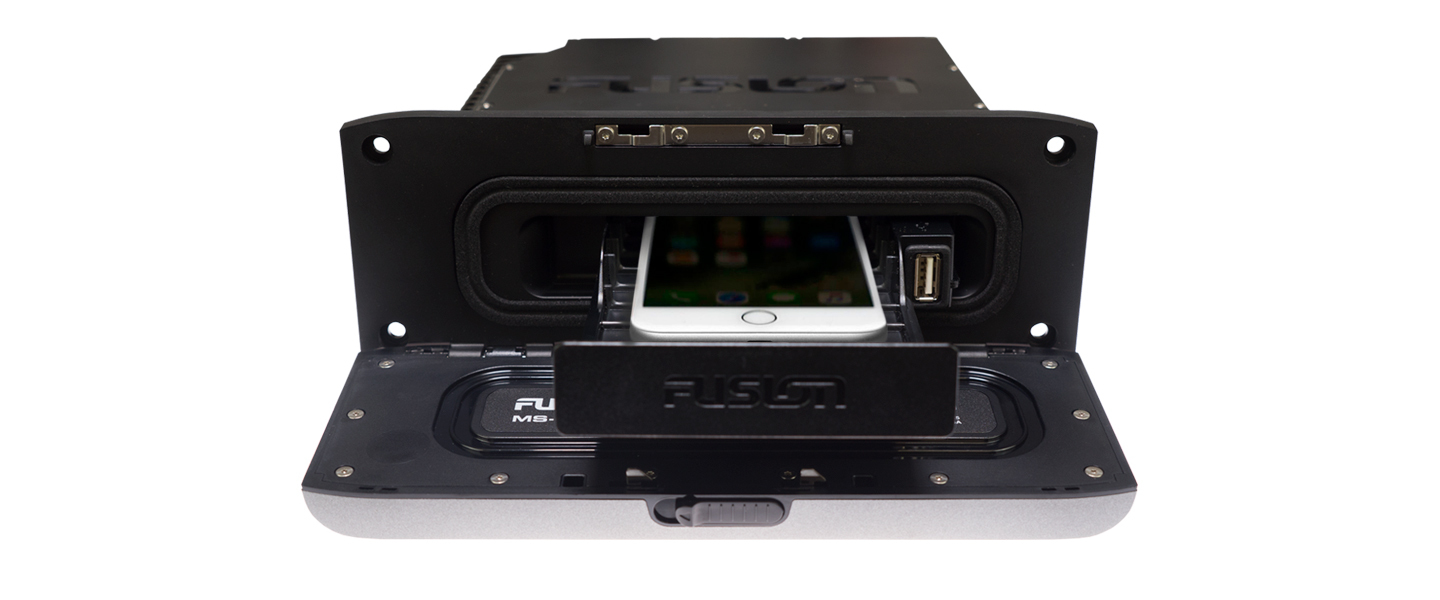

The MS-UD755 features an internal UNI-Dock for the charging, secure protection and playback of your favorite media devices. Supporting all of your media device requirements, including compatible Apple® iOS and MTP Android™ / Windows® devices (subject to device size constraints), it also features internal and rear accessible USB connectors for the playback of your USB media devices. The MS-UD755 is truly the pinnacle of audiovisual entertainment.
Enables direct stereo control from a compatible Multi-Function Display (MFD) or NRX Series wired remote control when utilizing an existing NMEA 2000 or Ethernet network. Visit FUSION-Link tab for compatible MFDs.

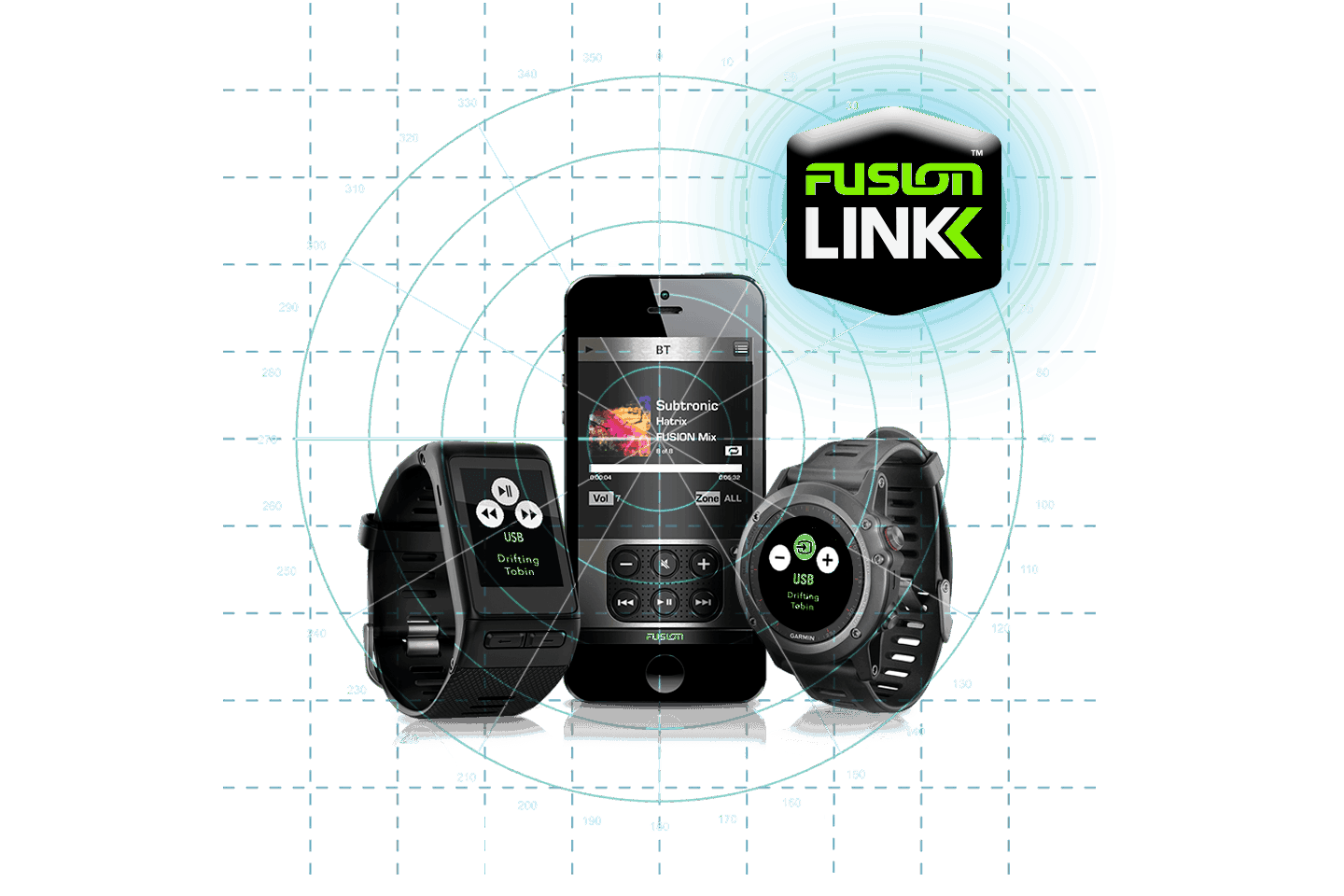

Download the free FUSION-Link remote control app for Bluetooth from the Apple® App Store or Google Play™ Store and enjoy the freedom of wireless control from your compatible smartphone. Download the free FUSION-Link Lite app from the Garmin Connect IQ Store to enable wireless control via ANT technology from your compatible Garmin watch.
The 755 Series offers advanced independent control of your audio entertainment, with a range of functions including control of the balance, subwoofer and volume level in up to four separate audio zones.
