Marine Black Box with Bluetooth Wired Remote & NMEA 2000

Sources: AM/FM / USB / AUX / iPhone / iPod / Android AOA / Bluetooth / DAB+ Ready (Requires MS-DAB100A)

Introducing the MS-BB100, a compact black box entertainment solution that incorporates the marine industry supported Fusion-Link protocol and Fusion's proven marine engineering skillset to deliver a boat load of tunes. The MS-BB100 includes an easy touch Bluetooth embedded IPX7 water resistant remote for quick audio adjustments. Supplied with a 2m (6.6ft) connection cable, the wired remote is ideally shaped for hassle free installation onto a dash or boat console. Engineered for either a flush or flat mount installation while the MS-BB100 is tucked away out of sight, saving precious space at the helm, you can choose the finish to suit your vessel.

UPDATE: Now with added support for Fusion-Link Lite via ANT for Garmin watch control.

Features:

Apple® iOS® and MTP Android™/Windows® media playback – Unparalleled support of the world’s most popular media devices, and the smartest interface for browsing your music library.

A2DP Bluetooth® wireless technology – Stream your family’s favorite soundtrack from any compatible device with track, album and artist info displayed, with navigation available from the provided wired remote, supported Fusion NRX Series remote, Fusion-Link app, compatible MFD or your connected device.

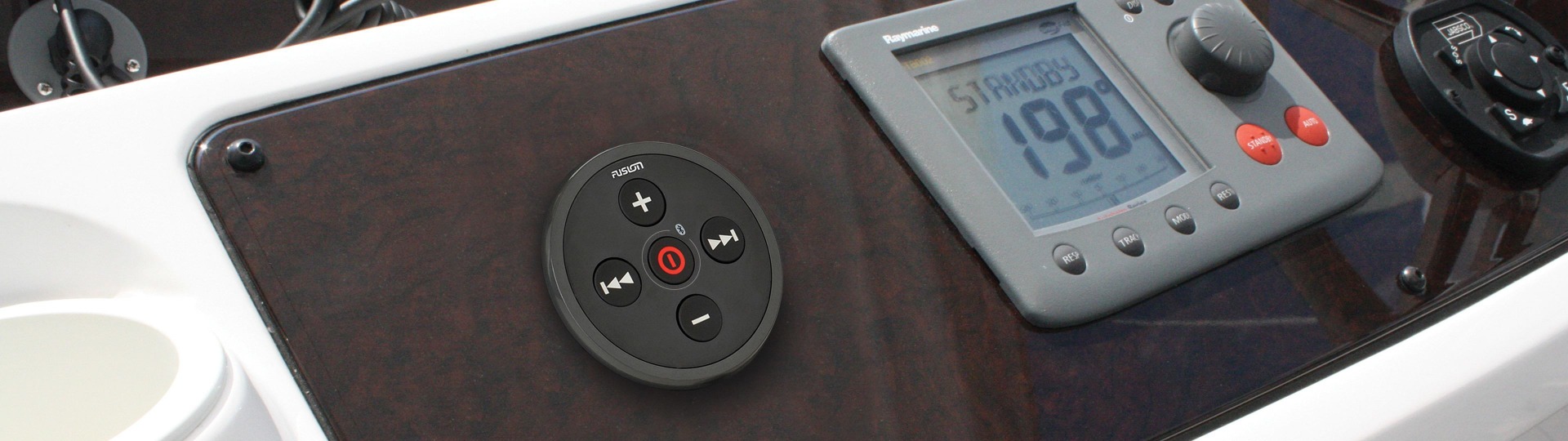

Fusion wired remote control – An easy touch IPX7 water resistant wired remote is included with the MS-BB100 for quick audio adjustments. Both flat and flush installation options are available. The Bluetooth receiver is embedded in the remote to reduce interference with smartphones for optimum reception. Note: The Fusion-Link Bluetooth app, provided remote, a Fusion NRX Series wired remote or compatible MFD is required for full control of the MS-BB100.

Fusion-Link® control (wired) – Direct stereo control from a compatible Multi-Function Display (MFD) or NRX Series wired remote control is available when utilizing an existing NMEA 2000 network. Visit www.fusion-link.com for compatible MFDs.

Fusion-Link control (wireless) – Download the FREE Apple or Android Fusion-Link remote control app from the Apple® App Store or Google Play™ Store to control your on-board entertainment experience from a compatible Apple or Android device. Wireless Fusion-Link control is available over Bluetooth. Fusion-Link Lite is available for download from the Garmin Connect IQ Store to enable wireless control via ANT technology from your compatible Garmin watch.

The Fusion-Link Wireless Remote Control for iPad or iPhone is available for FREE download from the Apple app store, click HERE

The Fusion-Link Wireless Remote Control for Android is available for FREE download from the Google Play Store, click HERE

To download the free Fusion-Link Lite app from the Garmin Connect IQ Store, click HERE.

Multi-Zone™ Technology – Two independent audio zones are available, each with localized menu controls. Multi-Zone Technology includes functions for naming and linking zones, disabling unused zones and setting volume limits. Note: Line Out/Sub Out require additional amplification.

Easy mount chassis – Simply secure out of sight, plug and play for effortless entertainment.

DAB+ ready - Connect the optional FUSION DAB+ module (sold separately) to experience high quality digital radio and an expanding assortment of stations (Only accessible where DAB+ is supported).

Product Specifications

Tuner AM/FM with RDS (via connected MFD, Fusion NMEA 2000 remote or Fusion-Link app where available)
Tuner Region USA, Australasia, Europe and Japan
Peak Power 200W Max (@ 4 Ω)
Amplifier Class-AB: 4 x 26 W rms @ 14.4Vdc input, 4 Ω, ≤ 10% THD+N
Audio Zones 2 on-board amplified zones
Nameable Zones Up to 10 characters per zone
Line Out 1 x L+R per zone (requires amplification)
Subwoofer Out 1 x Sub Out Linked to Zone 1 (requires amplification)
Auxiliary Inputs 1 x Stereo RCA Input (AUX)
iPod/iPhone Made for iPod and iPhone - supports IAP 2 protocol only
Android Open Accessory (AOA) Android support is limited to devices which support AOA protocol.
DAB+ Ready MS-DAB100A module (sold separately) is required for DAB support, only available where DAB and DAB+ is broadcast
Garmin watch app via ANT VivoActive/HR, Fenix 3/HR, Fenix 5/S/X, Quatix 3, D2 Bravo/Titanium, Fenix Chronos, Forerunner 935 - Fusion-Link app via Garmin Connect IQ
Fusion-Link Wireless Bluetooth remote control is available with the Fusion-Link remote control app, available for free download from the Apple® App Store or Google Play™
Fusion-Link Wired Compatible with a Fusion NMEA 2000 wired remote control and any supported Fusion-Link MFD. A powered network is required for NRX Series remote support
NMEA 2000 Certified LEN:1
Bluetooth A2DP Bluetooth Audio Streaming with AVRCP support
USB 1 x USB connector at the rear of the unit, supports 1 amp charging
Audio Format USB MP3
Water Resistance IPx7 water resistant remote from the front panel when correctly mounted. Black Box is rated IPx2 when correctly mounted.
Chassis Aluminium chassis with plastic end caps

Schreiben Sie eine Bewertung
Sie bewerten:Marine Black Box with Bluetooth Wired Remote & NMEA 2000
Weitere Informationen
Manufacturer Fusion

Marine Black Box with Bluetooth Wired Remote & NMEA 2000

349,00 €
Lieferbar 6-8 Tage
SKU
010-01517-01

Take Control With Multi-Zone™ Technology

The MS-BB100 and Fusion quick touch wired remote control offers independent control of your audio entertainment. With two independent audio zones available, each with advanced localized menu controls including zone naming, you can easily customize your listening experience in each zone.

Helm
Bow

Fusion-Link Wired Control

With the addition of a compatible NMEA 2000 Multi-Function Display you can enjoy on-screen control from any supported chartplotter or fishfinder. For localized audio control a Fusion NRX Series remote can be installed and connected to a NMEA 2000 network.

Fusion-Link Wireless Control

Download the free Fusion-Link remote control app for Bluetooth from the Apple® App Store or Google Play™ Store and enjoy the freedom of wireless control from your compatible smartphone. Download the free Fusion-Link Lite app from the Garmin Connect IQ Store to enable wireless control via ANT technology from your compatible Garmin watch.

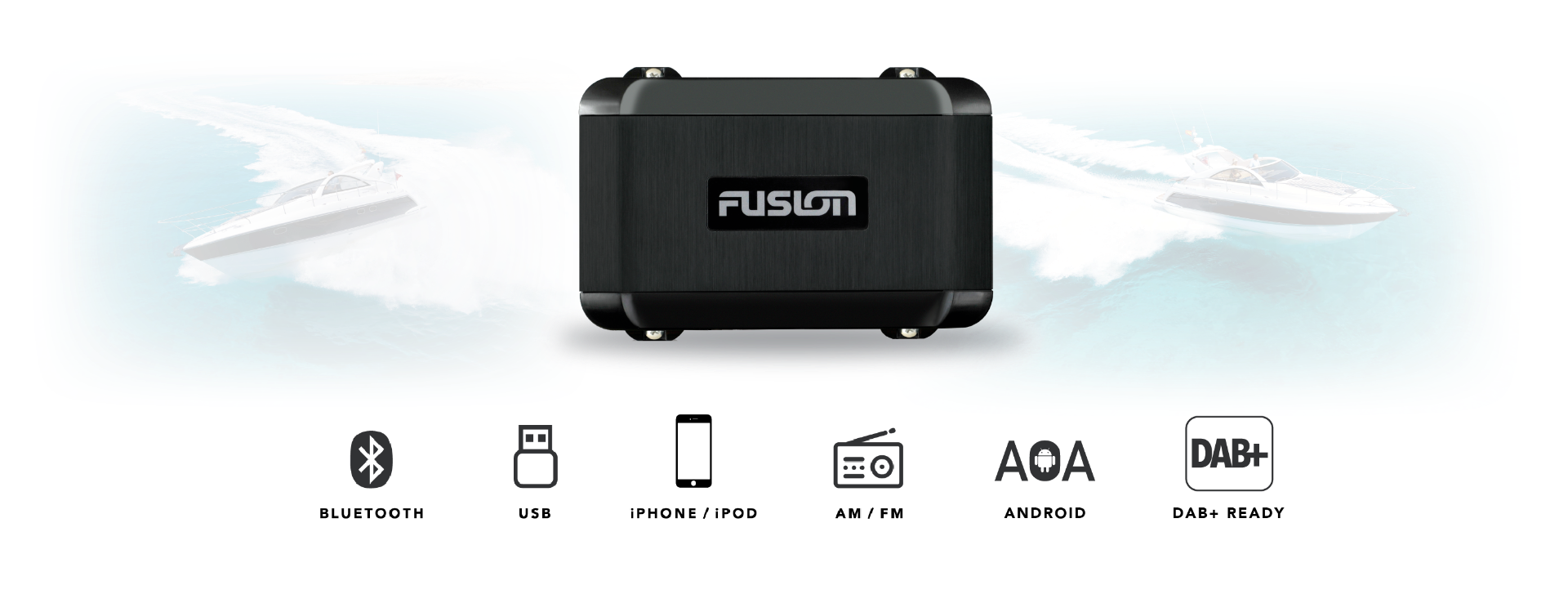

Audio Sources

The MS-BB100 offers a range of audio source options to enrich your onboard audio entertainment experience. Including AM/FM Tuner, A2DP Bluetooth® Streaming with Fusion-Link Bluetooth app remote control available, support for Apple® and Android™ AOA music playback and support for the latest DAB and DAB+ digital radio broadcasts (when the MS-DAB100A module and antenna package is incorporated into the system).
